FC7240Fxx Family - Single lockstep ARM ® Cortex ®- M7 core, ASIL-D
The FC7240Fxx family is a high-performance automotive HPU (Hyper Processing Unit) based on single lockstep Cortex-M7 core, ASIL-D functional safety level. Up to 240 MHz operating frequency , 4 CAN-FD. 2MB Flash and 256KB SRAM. The FC7240 family includes EVITA Full+ level HSM. AEC-Q100 qualified, Grade 1.
High Performance
One Cortex M7 running at 240MHz (3.23 Dhrystone MIPS per MHz) with extra One checker core
16kB ICache, 8kB DCache
Large memory
2MB P-Flash, 128K D-Flash
Up to 256K SRAM
Key Peripherals
4 FlexCAN (with CAN-FD support)
Enhanced FIFO
8 UART (with LIN support), 6xSPI, 2xI2C
2xADC, 12-bit, up to 32-ch per module
1x Micro Second Channel (MSC) modules
1x 4ch Sent Edge Nibble Transmit (SENT) modules
8xFTU (Flexible Timer Unit), 16-bit
TPU
Safety & Security
ISO 26262 ASIL-D
HSM with AES/SM4/SHA/SM3/RSA/ECC/SM2/SM9, RNGM
EVITA full, Key Management, Secure boot
AEC-Q100 Grade 1
Supply Voltage: 3.0-5.5V
Package:LQFP-EP100/144/176

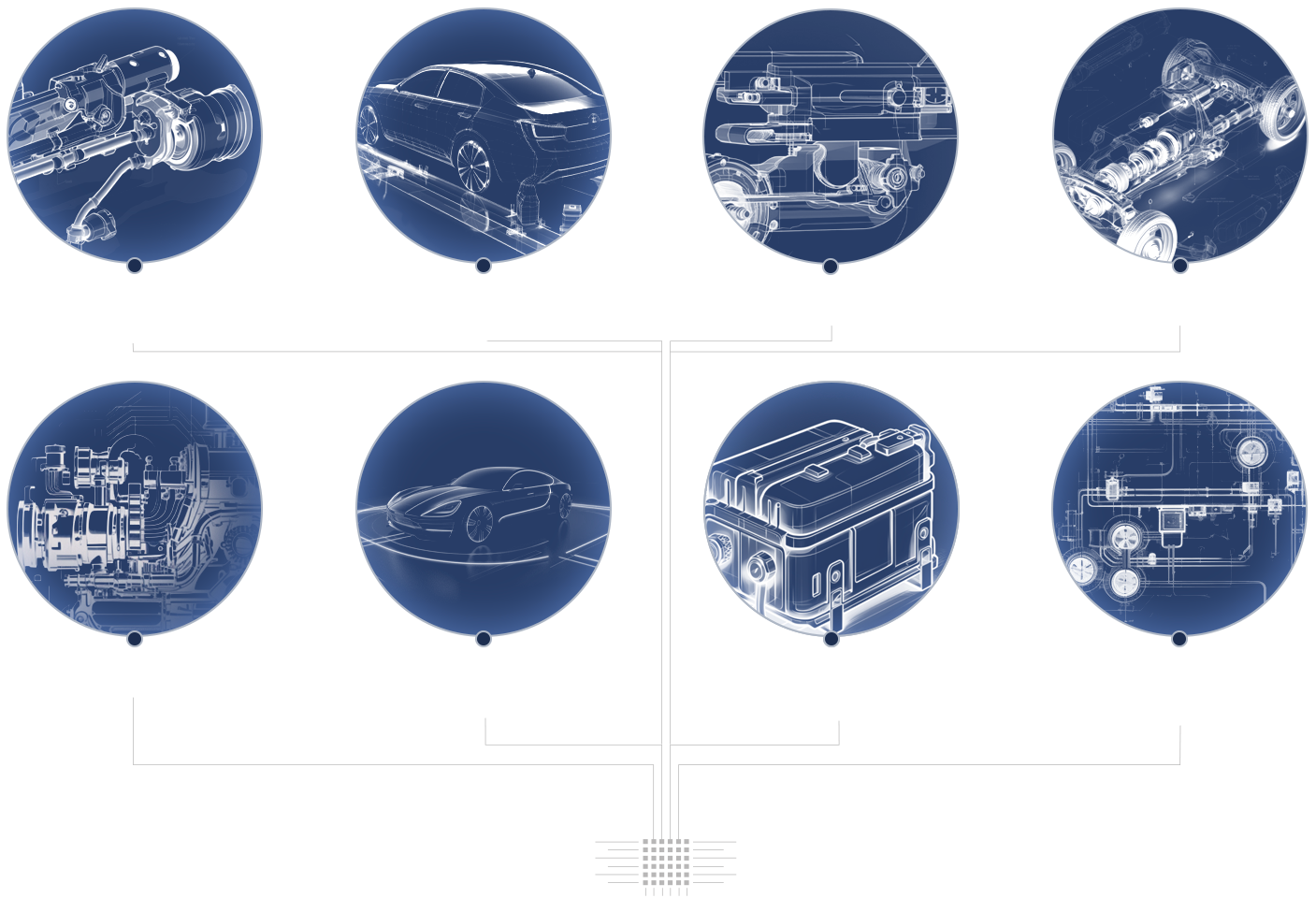

Target Application
-
Product SeriesDescriptionPackage
-
Product Series:FC7240F2MDS1 Cortex-M7 (1 lockstep), 240MHz,2MB P-Flash + 128K D-Flash, 256KB RAM,4 CAN-FD, MSC, SENT, HSM (EVITA full), ASIL-D, AEC-Q100 Grade 1Package:LQFP-EP100/144/176
